Features

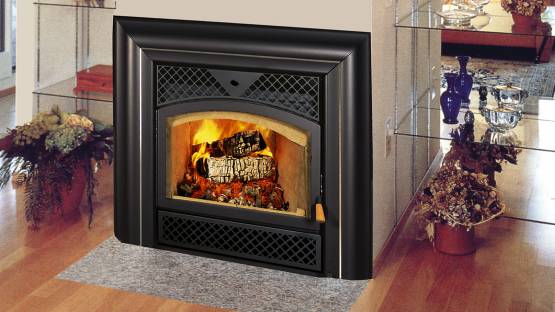

The Topaz is the first built-in fireplace to seamlessly combine a beautiful open fireplace with the performance of an EPA approved controlled combustion stove. The Topaz’s unique hideaway ceramic glass door is an industry first which enables you to choose between a controllable high performance wood burning stove and the crackle of a real open fireplace. Whatever the choice, it takes just seconds to convert the Topaz from an open fireplace to an EPA certified high performance stove.
The Topaz incorporates a unique façade which eliminates the need for any non-combustible facing whatsoever making it the easiest and most flexible unit on the market to finish. This fireplace is certified for use with 7″ ICC Model EXCEL chimney only. The chimney system height from the top of the fireplace must be a minimum of 12 ft.
Documents
Specifications
Outside Dimensions – 36¼”W X 36 3/4″H X 24″D
Weight (ship wt add 70 lb) – 405 lb
Firewood Length – 16″
Firebox Size – 2.1 cubic feet
BTU Output Range – 11,000 to 50,000
Heating Capacity – 800 to 1500 ft2
EPA Certification – note
Chimney – 7″ Excel
Door Finish – Black, Pewter, 24K Gold Plated or Cathedral (black)
Ash Pan – N/A
Gravity Vent Kit – FO-V2
Gravity Vent Damper – N/A
Electric Wall Thermostat – N/A
Heat Dump – FO-HD
Internal Blower – FO-FDHB8
Central Heating Blower 635 cfm – N/A
Central Heating Tee – N/A
Zone Heating Option – N/A
Rock Retainer Kit – N/A
Clean Facing – N/A
Inline Fan – N/A
Gas Log Provision – N/A
Masonry Chimney Option – FO-FDM7
Firescreen – FO-FDFST
Outside Air – 4″, meets R2000
Mobile Home Approved – NO
Louver or Grill Options – Black, Pewter or Gold Plated Louvers & Black or Pewter Extrusions
