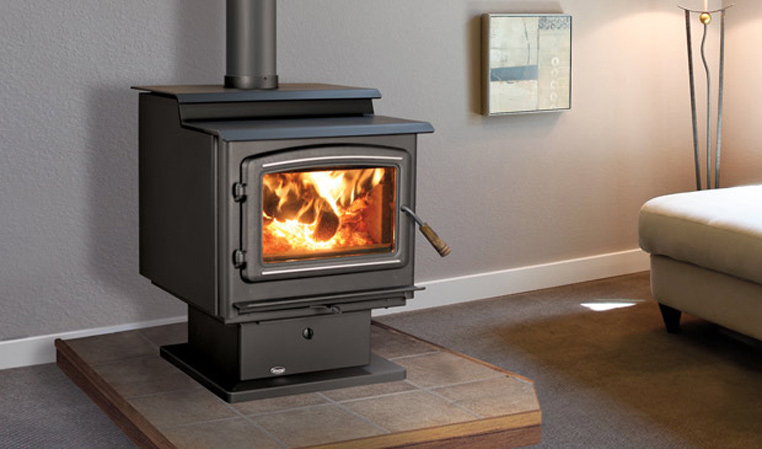

Kodiak 1700 Wood Stove
Options
- Step Top or Flat Top Body Style.
- Pedestal Base with Standard Ash Pan.
- Cast Iron Legs in Painted, Gold or Nickel with Standard Ash Pan.
- Cast Iron Door in Painted, Gold or Nickel Finish and Painted Door with Gold or Nickel Trim.
- 135 CFM Fan Kit with Variable Speed Control.
- “Heat Efficiency Shield” Convection Air Scoop for Flat Top Models.
- Fresh Air Kit for Airtight Homes.
Specifications
-
Heating Area – 3,000 ft²
-
BTU’s – 74,000
-
Efficiency – 84.7%
-
Glass Size – 177 in²
-
Convection Fan – Optional
-
EPA Emissions – 4.5 gms
-
Log Size – 20”
-
Burn Time – 8-12 hrs
-
Firebox Size – 2.5 ft²
-
Weight – 320 lbs
-
Flat Top Dims – 25” W x 28” H x 27” D
-
Step Top Dims – 25” W x 31” H x 27” D
Features
- Side air damper rod stays cool to the touch.
- Single, easy-to-use draft control to easily regulate fire.
- Twin pilot-injector ports for easy start up.
- Ultra strong air wash to keep glass clean.
- 3 x 1″ 304 grade stainless steel secondary air tubes.
- Brick-lined firebox with 6″ flute.
- Ceramic top baffle.
- Mobile home approved.
- Heavy-duty construction weighing up to 400 lbs.
- 5/16″ thick steel top and ash shelf on flat top models.
- 1/2″ diameter door handle and hinge pins.
- Cast iron adjustable door latch.
